In the dynamic arena of modern air combat, the Lockheed Martin F-16 Fighting Falcon has long been a global benchmark for fourth-generation fighter aircraft. However, China’s Chengdu J-10 “Vigorous Dragon” has emerged as a formidable challenger, often drawing direct comparisons. The J-10 vs F-16 debate is more than just a technical comparison; it reflects differing industrial capabilities, design philosophies, and geopolitical strategies. Both are single-engine, multi-role fighters, but their evolution and roles paint a compelling picture.
Origins and Design Philosophy: A Global Standard vs. Indigenous Ambition
The genesis of these two aircraft highlights their distinct paths, shaping the J-10 vs F-16 narrative:
- F-16 Fighting Falcon: Born from the “Lightweight Fighter” concept in the 1970s, the F-16 was designed by General Dynamics (now Lockheed Martin) to be a relatively low-cost, highly maneuverable, and versatile aircraft. Its initial focus was air-to-air combat, but it quickly evolved into a true multi-role platform capable of precision ground attack. Its widespread adoption by numerous air forces worldwide attests to its successful design philosophy of cost-effectiveness combined with potent capability.
- J-10 Vigorous Dragon: The J-10 represents China’s ambitious leap in indigenous fighter development, emerging from the lessons learned from earlier, less successful programs and possibly incorporating design influences from the cancelled Israeli IAI Lavi. Its primary goal was to provide the People’s Liberation Army Air Force (PLAAF) with a modern, indigenous multi-role fighter capable of replacing older Chinese types and standing against contemporary Western designs. The development of the J-10 signifies China’s commitment to self-reliance in advanced military aviation, making the J-10 vs F-16 comparison a symbol of industrial competition.
Aerodynamics and Configuration: J-10 vs F-16
A visually striking difference in the J-10 vs F-16 is their aerodynamic configuration:
- F-16 Fighting Falcon: The F-16 features a conventional delta-wing/tail layout (known as a cropped delta wing) with a single vertical stabilizer and ventral fins. Its relaxed static stability, coupled with a sophisticated fly-by-wire (FBW) system, grants it exceptional agility and responsiveness, particularly in trans-sonic speeds.
- J-10 Vigorous Dragon: The J-10 employs a distinct “canard-delta” configuration, featuring a large delta wing and forward-mounted canards. This design typically offers superior low-speed agility and high angle-of-attack performance, which can be advantageous in close-in aerial combat. While some variants of the J-10 have been speculated to feature thrust vectoring for even greater maneuverability, the baseline J-10 vs F-16 aerodynamic comparison shows two different approaches to achieving agility.
Propulsion: Proven Workhorses
Both aircraft rely on a single turbofan engine for propulsion, but their origins differ in the J-10 vs F-16 context:
- F-16 Fighting Falcon: The F-16 has been powered by highly reliable and powerful engines from General Electric (F110 series) and Pratt & Whitney (F100 series). These engines have demonstrated excellent performance and reliability over decades of service globally.
- J-10 Vigorous Dragon: Early variants of the J-10 primarily used the Russian AL-31FN turbofan engine. However, more recent and export variants, particularly the J-10C/CE, have increasingly transitioned to China’s indigenously developed WS-10B “Taihang” engine, signaling a move towards greater engine autonomy. The performance of the WS-10B is often cited as comparable to the F-16’s engines, making the engine aspect of J-10 vs F-16 increasingly balanced.
Avionics and Sensors: J-10 vs F-16
Modernization efforts have brought significant upgrades to the avionics of both aircraft, making the J-10 vs F-16 comparison challenging across different blocks:

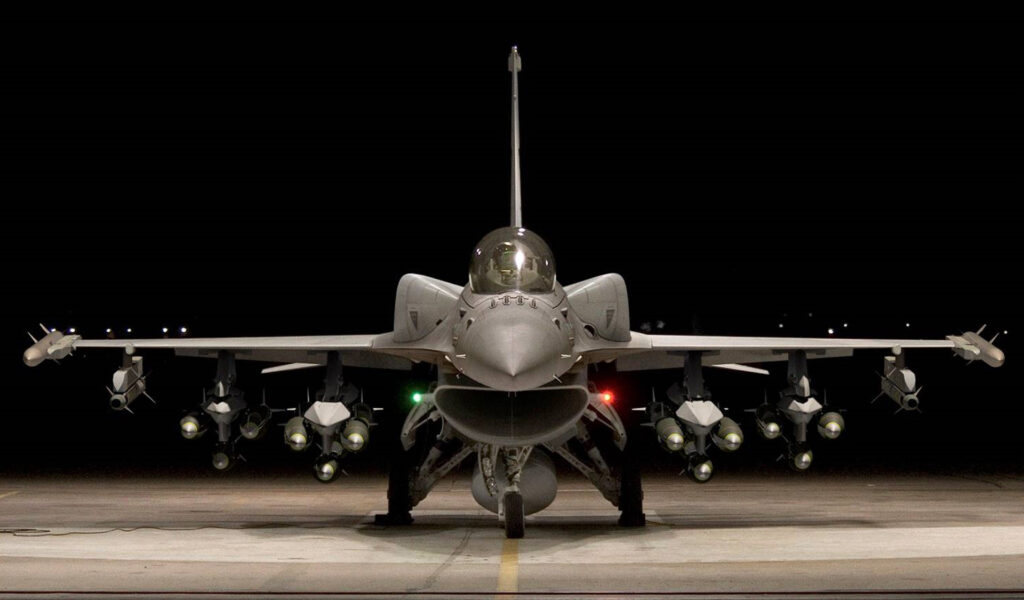

- F-16 Fighting Falcon: Modern F-16 variants, especially the Block 70/72 “Viper,” are equipped with advanced Active Electronically Scanned Array (AESA) radars (like the AN/APG-83 SABR), vastly improving situational awareness, target detection range, and electronic warfare capabilities. They feature modern glass cockpits, helmet-mounted displays, and sophisticated data links. The F-16’s combat history has continually driven its avionics upgrades.
- J-10 Vigorous Dragon: The latest J-10C and J-10CE variants also feature indigenously developed AESA radars (like the KLJ-10A), offering multi-target tracking, long-range detection, and electronic counter-countermeasures. These variants also incorporate advanced glass cockpits, helmet-mounted sights, and integrated electronic warfare suites. Some reports suggest China’s AESA radar might offer a slight range advantage over certain F-16 radar systems. This rapid advancement in Chinese avionics has significantly narrowed the gap in the J-10 vs F-16 technical capabilities.
J-10 vs. F-16: A Comparative Table
| Feature | Chengdu J-10 “Vigorous Dragon” (J-10C/CE) | Lockheed Martin F-16 Fighting Falcon (Block 70/72) |
|---|---|---|
| Primary Role | Multirole Fighter | Multirole Fighter |
| Manufacturer | Chengdu Aircraft Industry Group (CAIG) | General Dynamics / Lockheed Martin Aeronautics |
| Country of Origin | China | United States |
| First Flight | March 23, 1998 | January 20, 1974 |
| Entered Service | 2005 (J-10A), ~2018 (J-10C) | 1978 (original F-16A) |
| Aerodynamic Config. | Canard-delta wing | Conventional cropped delta wing with horizontal stabilators |
| Engines (Type) | 1 x Shenyang WS-10B “Taihang” (indigenous); some early variants used Russian AL-31FN | 1 x General Electric F110-GE-129 or Pratt & Whitney F100-PW-229 |
| Radar System | Indigenous AESA radar (e.g., KLJ-10A) | AN/APG-83 SABR AESA radar |
| Avionics/Cockpit | Modern glass cockpit, HMDS, integrated EW suite | Modern glass cockpit, HMDS, advanced data links, integrated EW |
| Internal Cannon | 23mm GSh-23-3 | 20mm M61A1 Vulcan |
| Key Air-to-Air Missiles | PL-10 (WVR), PL-12 (MVR), PL-15 (BVR) | AIM-9X Sidewinder (WVR), AIM-120 AMRAAM (BVR) |
| Key Air-to-Ground Munitions | KD-88, YJ-91 (anti-rad/ship), various PGMs | JDAM, Paveway series, AGM-65 Maverick, etc. |
| Maximum Speed | ~Mach 2.2 | ~Mach 2.05 |
| Combat Radius | ~1,100 – 1,500 km (600 – 810 nmi) | ~550 km (340 miles) on internal fuel (varies greatly with loadout/configuration) |
| Unit Acquisition Cost (Approx.) | $40 – $50 million (J-10CE export) | $60 – $70 million (Block 70/72, flyaway) |
| Total Production (Approx.) | ~500+ (all variants) | ~4,700+ (all variants, global) |
| Export Status / Key Users | Pakistan (J-10CE), potentially Egypt, Indonesia | Over 25 global air forces |
| Key Advantages | Longer-range AAM (PL-15), canard-delta agility, newer AESA radar (for current variant) | Extensive combat history, proven reliability, vast global support network, continuous upgrades |
Armament: Air-to-Air and Air-to-Ground Punch
Both aircraft are true multi-role platforms, capable of carrying a wide array of munitions:
- F-16 Fighting Falcon: The F-16 carries a M61 Vulcan 20mm rotary cannon and has numerous external hardpoints for air-to-air missiles (AIM-9 Sidewinder, AIM-120 AMRAAM) and a vast arsenal of air-to-ground munitions, including JDAMs, Paveway laser-guided bombs, and various precision-guided munitions (PGMs). Its weapon integration experience spans decades.
- J-10 Vigorous Dragon: The J-10 is armed with a 23mm cannon and features 11 external hardpoints. Its air-to-air missile lineup includes the PL-8 (short-range IR), PL-10 (high-agility IR), PL-12 (medium-range active radar), and the formidable PL-15 (long-range active radar BVR missile). For air-to-ground, it carries precision-guided bombs and missiles like the KD-88 and YJ-91 anti-radiation/anti-ship missiles. The PL-15’s longer range is often cited as a potential advantage in a J-10 vs F-16 beyond-visual-range engagement.
Operational Status and Export Success: Global Reach vs. Emerging Market
The global footprint heavily defines the J-10 vs F-16 narrative:
- F-16 Fighting Falcon: With over 4,700 units produced, the F-16 is one of the most successful fighter aircraft ever. It serves with over 25 air forces worldwide, accumulating immense combat experience across various conflicts and terrains. Its established logistical network, upgrade pathways, and proven reliability make it a highly attractive option.
- J-10 Vigorous Dragon: The J-10 is primarily operated by the People’s Liberation Army Air Force (PLAAF) and the People’s Liberation Army Naval Air Force. Its first significant export success was with Pakistan, which acquired the J-10CE variant. China is actively promoting the J-10C/CE in the export market, including recent interest from countries like Egypt and Indonesia, positioning it as a capable and cost-effective alternative to Western fighters. While the F-16 has decades of export dominance, the J-10 is a rising contender in the J-10 vs F-16 export competition, particularly for nations seeking non-Western sources.
Evolution and Upgrades: Continuous Improvement
Both aircraft have undergone continuous upgrades to remain relevant:
- F-16 Fighting Falcon: From the initial Block 1 to the advanced Block 70/72 “Viper,” the F-16 has seen numerous structural, avionics, and weapons upgrades. This longevity and adaptability are key to its enduring success.
- J-10 Vigorous Dragon: The J-10 has evolved from the initial J-10A to the J-10B/C variants, incorporating improved engines, AESA radars, and advanced avionics. This demonstrates China’s rapid advancements in aerospace technology.
Conclusion: A Dynamic Rivalry
The J-10 vs F-16 comparison highlights the continuous evolution of fourth-generation fighters and the rising capabilities of non-Western defense industries. While the F-16, particularly its Block 70/72 variant, remains a highly potent and proven platform with unmatched global reach and combat heritage, the J-10C/CE represents a significant achievement for China. It offers competitive capabilities, especially in terms of radar technology and long-range air-to-air missiles, and presents a compelling argument for countries looking for advanced, multi-role fighters outside traditional Western supply chains. The rivalry between the J-10 vs F-16 is more than just about two aircraft; it symbolizes a shifting landscape in global military aviation.
